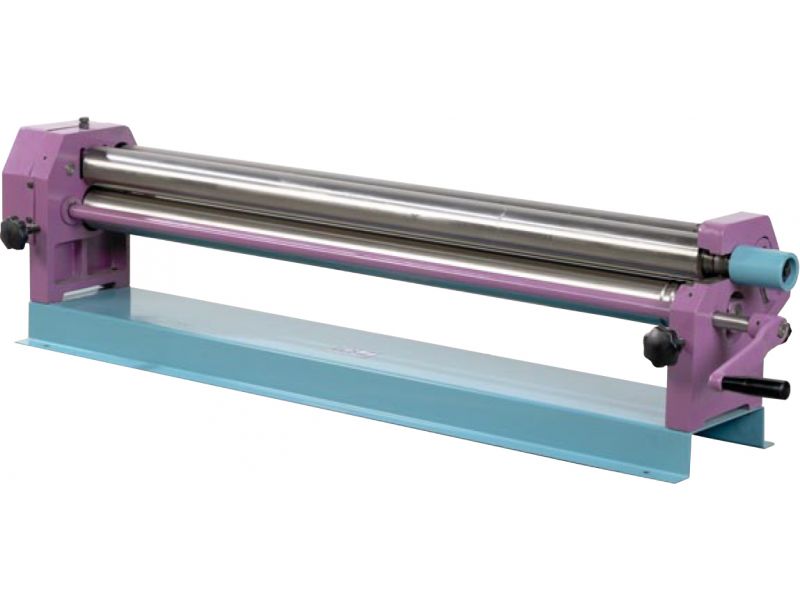

Lenz LRM 1000 Manual Sheet Bending Rolls
The Lenz range of LRM manual bench rolls are designed to bend sheet up to a maximum thickness of1.5mm. The top roll can swing away for the removal of tubular formed components. The hardened and ground rolls ensure long working life.
Features
- Bench mounted
- Hardened rolls
- Top slip roll
- Easy adjustment of lower pinch roll
Options
Capacities
Technical Specification
| MODEL | LRM 1000 | ||
|---|---|---|---|
| Capacity mm | 0.8 | ||
| Bending length mm | 1000 | ||
| Max angle º | - | ||
| Roll dia mm | 50 | ||
| Length mm | 1320 | ||
| Width mm | 250 | ||
| Height mm | 340 | ||
| Weight kg | 86 | ||
