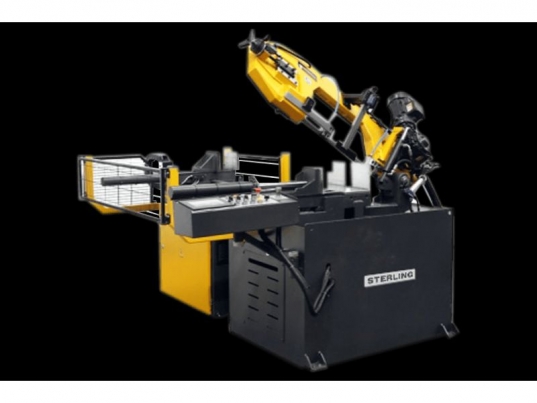

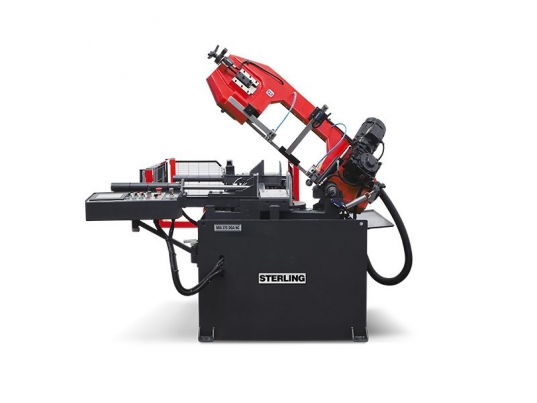

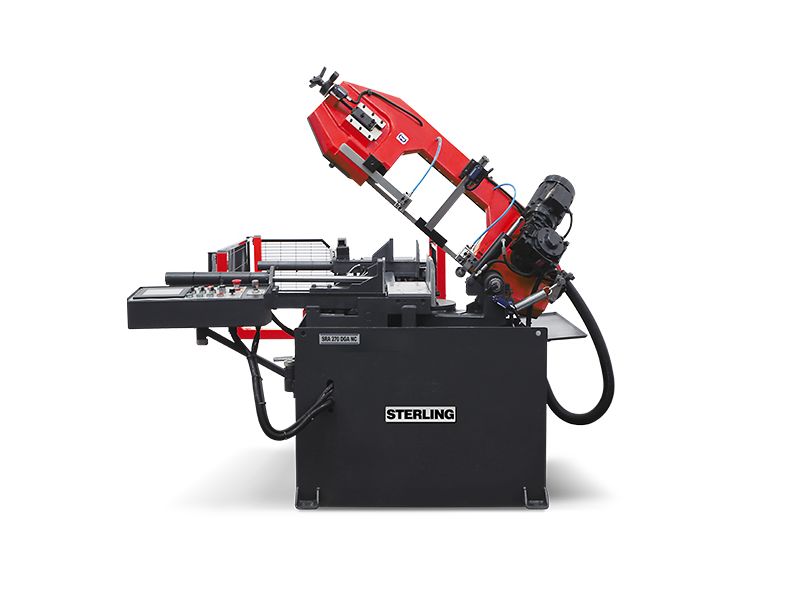

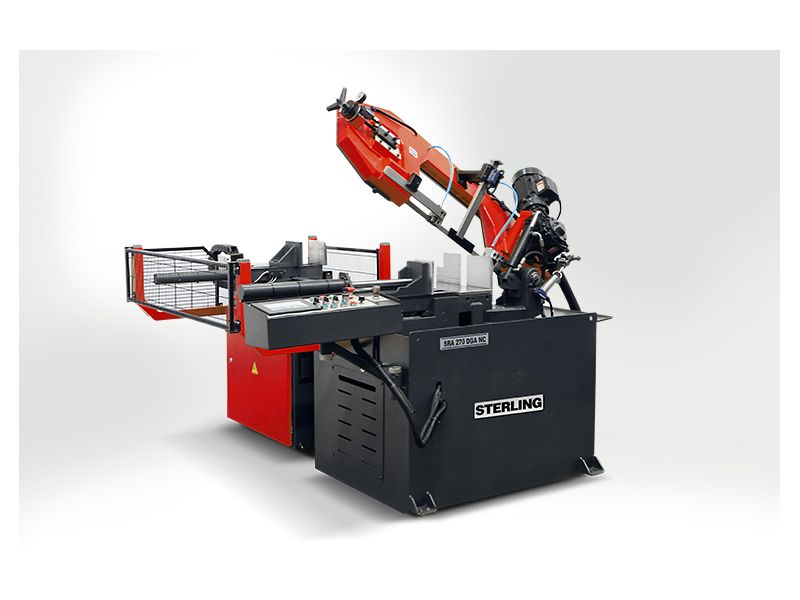

Sterling SRA 270 DGA NC Automatic Bandsaw
Sterling SRA 270 DGA NC Automatic Bandsaw combines robust construction with advanced features, including auto down-feed, automatic bow return, and a double-mitring head for cutting angles without turning the material. Its sliding hydraulic vice and shuttle vice ensure precision, while variable blade speeds accommodate mild and stainless steels.
A built-in flood-coolant system prolongs blade life, ensures cleaner cuts, and prevents overheating. Hydraulic gravity down-feed allows controlled cutting speeds, and an automatic stop enhances safety after each cut.
.jpg)
Features
- Hydraulic Vice

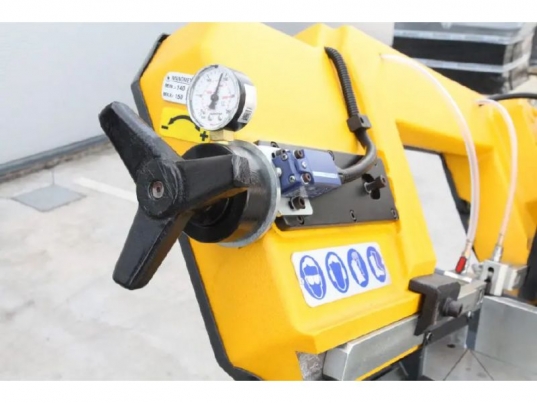

- Hydromechanic Blade Tension
- Saw Blade 27 mm
- Feeding Vice 1000 mm Stroke
- 1 Programme With 10 Steps
- Security Switch
- Coolant Pump

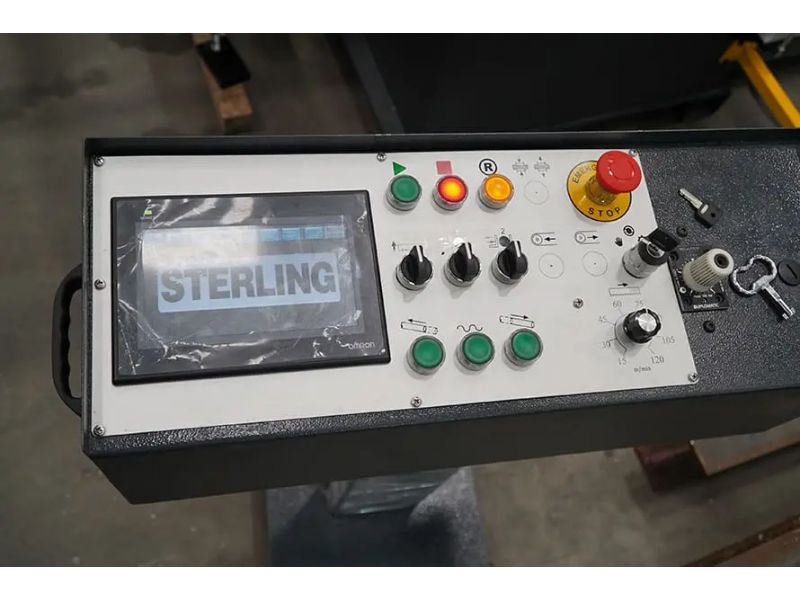

- Touch Screen Control Panel
Options
- Hydraulic Top Clamping
- Micro Spray
- 3 mt. Roller Table
Capacities
Technical Specification
| Specification | Unit | Value | 0° | +45° | +60° | -45° |
|---|---|---|---|---|---|---|
| Capacity - Round | mm | 270 | 250 | 150 | 200 | |
| Capacity - Flat | mm | 340 x 240 | 230 x 180 | 150 x 100 | 210 x 100 | |
| Capacity - Square | mm | 270 | 180 | 100 | 170 | |
| Bed Height | mm | 845 | ||||
| Blade Dimensions | mm | 3160 x 27 x 0.9 | ||||
| Cutting Speeds | m/min | 15 – 120 | ||||
| PLC Controller | Omron | |||||
| Program | 10 Steps | |||||
| Stroke Length | mm | 1000 | ||||
| Remnant Piece | mm | 250 (Auto) / 50 (Manual) | ||||
| Max. Feed | mm | 6000 | ||||
| Motor | kW | 1.5 | ||||
| Dimensions (L × W × H) | mm | 2400 × 1900 × 1600 | ||||
| Weight | kg | 920 | ||||
| Operation | Automatic | |||||
| Vice | Hydraulic | |||||
| Vice Feed | Hydraulic | |||||
