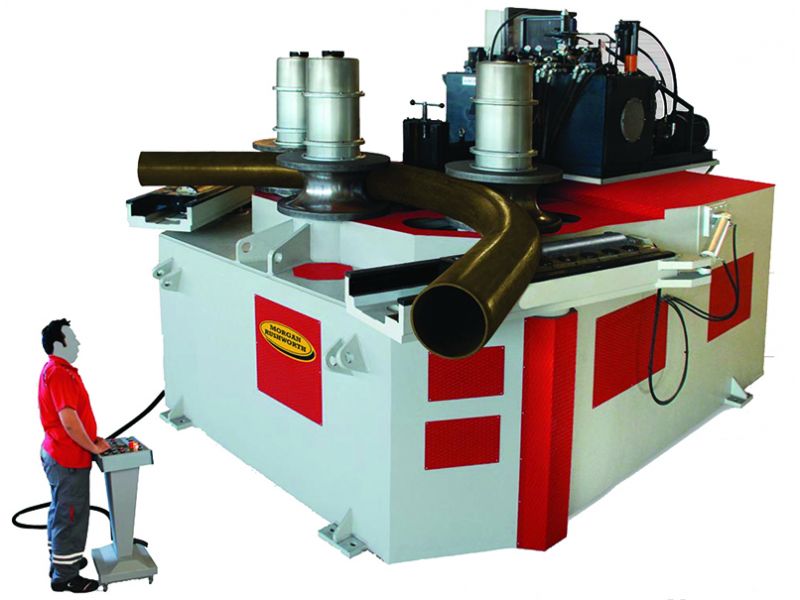

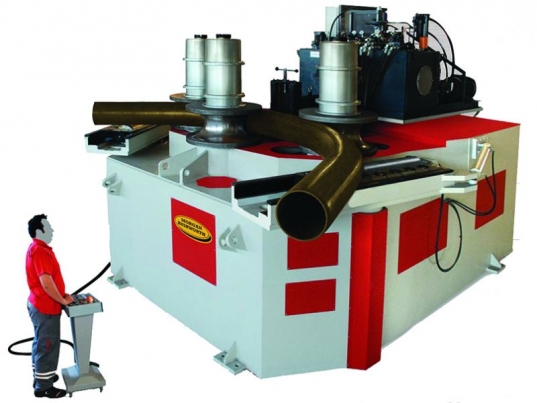

Morgan Rushworth HSRD 180/460 Hydraulic Section Bending Machine
The Morgan Rushworth HSRD are one of the highest capacity ranges of section bending machines available. The largest HSRD 550/800 model can effortlessly roll 558mm x 22mm pipe and weighs a remarkable 61 tonnes. In all there are 6 models in the range starting with the 150mm model, all with powerful hydraulics controlling roll up and down translation, roll rotation and lateral guide roll movement.
The HSRD machines are of the double prebending design with bottom rolls controlled independently with seprate digital readout indicating roll position.
Features
- All three rolls driven for excellent traction
- Hardened rolls
- Moveable control panel
- Digital readout indicating both back rolls position
- Overload protection device
- Hydraulically powered rotation
- Hydraulically adjusted lateral guide rolls in 2 axis
- Variable speed of rotation
Options
- Tube / profile rolls
- Variable speed of rotation
- Spiral bending device
- NC control system
- CNC control system
- Digital display for guide rolls
- IUH profile pulling system
Capacities
| MODEL | HSRD 180/460 | ||
|---|---|---|---|
 |
150 x 35 1000Ø |
||
 |
250 x 40 1400Ø |
||
 |
90 x 90 2500Ø |
||
 |
100 2500Ø | ||
 |
160 x 65 10,000Ø |
||
 |
168.3 x 7.1 2500Ø |
||
 |
120 x 8 |
||
 |
- |
||
 |
150 x 10 1000Ø |
||
 |
130 x 15 1200Ø |
||
 |
150 x 15 1200Ø |
||
 |
130 x 15 1700Ø |
||
 |
150 x 15 1300Ø |
||
 |
INP 300 1200Ø |
||
 |
UNP 300 1100Ø |
||
 |
UNP 300 1100Ø | ||
 |
IPE 160 3500Ø | ||
 |
120 3500Ø 120 2800Ø |
||
Technical Specification
| MODEL | HSRD 180/460 | ||
|---|---|---|---|
| Section Modulus mm3 | 110 | ||
| Power kW | 15 | ||
| Rolls Ø mm | 460 | ||
| Shaft Ø mm | 180 / 160 | ||
| Bending speed m/min | 0 - 7 | ||
| Length mm | 2400 | ||
| Width mm | 2000 | ||
| Height mm | 1695 | ||
| Weight kg | 9250 | ||
