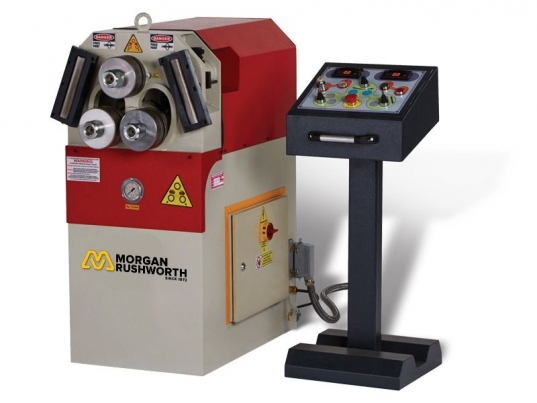

Morgan Rushworth HSR-3 40/140 Hydraulic Section Bending Machine
The Morgan Rushworth HSR-3 range of hydraulic section bending machines are designed to roll various material sections and are available with shaft diameters from 50mm up to 120mm. All models have twin rams powering both of the lower rolls, providing pre bending capability and the convenience of performing the bending operation with the material in the horizontal position. All of the HSR-3 machines can be operated in either vertical or horizontal plain. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, avoiding the cost of additional tooling. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material.
Features
- All three rolls driven for excellent traction
- Smooth rolls ensure minimum material marking
- Hardened rolls
- Moveable control panel
- Digital read out indicating both back rolls position
- Overload protection device
- Hydraulically powered rotation
- Hydraulically adjusted lateral guide rolls in 2 axis
- Variable speed of rotation
Options
- Tube/profile rolls
- Variable speed of rotation
- Spiral bending device
- NC control system
- CNC control system
- Digital display for guide rolls
- I-U-H profile pulling system
Capacities
Technical Specification
| MODEL | HSR-3 40/140 | ||
|---|---|---|---|
| Flat bar on edge at 300mm Ø mm | 35 x 8 | ||
| Flat bar as flat at 400mm Ø mm | 50 x 12 | ||
| Square bar at 250mm Ø mm | 18 | ||
| Round bar at 200mm Ø mm | 22 | ||
| Round bar at 500mm Ø mm | 40 x 1.5 | ||
| Round pipe at 200mm Ø mm | 33.7 x 2.3 | ||
| Rectangular hollow section at 500mm Ø mm | 30 x 15 x 2.5 | ||
| Square hollow section at 450mm Ø mm | 25 x 25 x 2 | ||
| Angle iron toe out at 400mm Ø mm | 35 x 35 x 5 | ||
| Angle iron toe in at 550mm Ø mm | 30 x 30 x 4 | ||
| Tee section toe out at 300mm Ø mm | 30 x 30 x 5 | ||
| Tee section toe in at 350mm Ø mm | 35 x 35 x 5 | ||
| Tee section toe up/down at 300mm Ø mm | 3 x 35 x 5 | ||
| Channel legs out at 350mm Ø mm | 40 x 20 x 5 | ||
| Channel legs in at 500mm Ø mm | 35 x 18 x 5 | ||
| Motor power kW | 1.1 | ||
| Rolls Ø mm | 137 | ||
| Shafts Ø mm | 35 | ||
| Bending speed m/min | 7 | ||
| Length mm | 1050 | ||
| Width mm | 500 | ||
| Height mm | 1250 | ||
| Weight kg | 350 | ||
Similar Models
| MODEL | HSR-3 60/180 | ||
|---|---|---|---|
| Flat bar on edge at 500mm Ø mm | 60 x 20 | ||
| Flat bar as flat at 500mm Ø mm | 80 x 20 | ||
| Square bar at 400mm Ø mm | 32 | ||
| Round bar at 350mm Ø mm | 35 | ||
| Round bar at 600mm Ø mm | 60 x 2 | ||
| Round pipe at 400mm Ø mm | 60.3 x 3.9 | ||
| Rectangular hollow section at 450mm Ø mm | 50 x 25 x 3 | ||
| Square hollow section at 600mm Ø mm | 45 x 45 x 3 | ||
| Angle iron toe out at 650mm Ø mm | 60 x 60 x 6 | ||
| Angle iron toe in at 550mm Ø mm | 50 x 50 x 5 | ||
| Tee section toe out at 550mm Ø mm | 60 x 7 | ||
| Tee section toe in at 500mm Ø mm | 50 x 6 | ||
| Tee section toe up/down at 500mm Ø mm | 60 x 7 | ||
| Channel legs out at 600mm Ø mm | UPN 80 | ||
| Channel legs in at 600mm Ø mm | UPN 65 | ||
| Motor power kW | 3 | ||
| Rolls Ø mm | 175 | ||
| Shafts Ø mm | 60/50 | ||
| Bending speed m/min | 5 | ||
| Length mm | 1200 | ||
| Width mm | 850 | ||
| Height mm | 1200 | ||
| Weight kg | 1000 | ||
| MODEL | HSR-3 80/245 | ||
|---|---|---|---|
| Flat bar on edge at 800mm Ø mm | 80 x 20 | ||
| Flat bar as flat at 600mm Ø mm | 125 x 25 | ||
| Square bar at 500mm Ø mm | 45 x 45 | ||
| Round bar at 500mm Ø mm | 50 | ||
| Round bar at 1200mm Ø mm | 100 x 2.5 | ||
| Round pipe at 800mm Ø mm | 88.9 x 5.5 | ||
| Rectangular hollow section at 800mm Ø mm | 80 x 25 x 3 | ||
| Square hollow section at 1300mm Ø mm | 70 x 70 x 3 | ||
| Angle iron toe out at 800mm Ø mm | 80 x 80 x 8 | ||
| Angle iron toe in at 700mm Ø mm | 70 x 70 x 7 | ||
| Tee section toe out at 800mm Ø mm | 80 x 9 | ||
| Tee section toe in at 800mm Ø mm | 70 x 8 | ||
| Tee section toe up/down at 800mm Ø mm | 80 x 9 | ||
| Channel legs out at 900mm Ø mm | UPN 120 | ||
| Channel legs in at 1000mm Ø mm | UPN 120 | ||
| Motor power kW | 4 | ||
| Rolls Ø mm | 245 | ||
| Shafts Ø mm | 80/70 | ||
| Bending speed m/min | 6 | ||
| Length mm | 1450 | ||
| Width mm | 1000 | ||
| Height mm | 1400 | ||
| Weight kg | 1700 | ||
