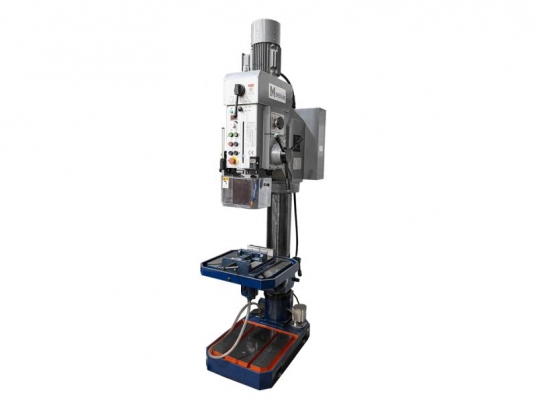

SR50VAE Pillar Drill
The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.
The Meyer SR50VAE is our largest Pillar Drill; with Auto feed drilling and tapping and variable drill speed.
Features
- Geared head
- Exceptional heavy construction
- DRO for downfeed stroke
- DRO for spindle speed
- Large work tables
- Auto tool release
- Eye shield with interlock switch
- Coolant system
- Low voltage lamp
- Tilting work table +- 45º
- Powered rise and fall table
Options
- Infinitely variable blade speed
- Drill press vice (Stock Code: 18009)
- Universal cross table (Stock Code: 18047)
- Milling collett chuck set (Stock Code: 18048)
Capacities
Technical Specification
| MODEL | SR25 | SR32 | SR32AE | SR50VAE |
|---|---|---|---|---|
| Capacity mm | 25 | 32 | 32 | 50 |
| Column Dia mm | 95 | 120 | 120 | 180 |
| Spindle Taper MT no | 3 | 4 | 4 | 4 |
| Motor kW | 0.75 | 1/1.2 | 1/1.2 | 3 |
| Speeds rpm | 125 – 2825 (stepped) | 125 – 3030 (stepped) | 125 – 3030 (stepped) | 50 – 2200 (variable) |
| Spindle Stroke mm | 110,/td> | 160 | 160 | 240 |
| Work Table mm | 350 x 400 | 500 x 420 | 500 x 420 | 580 x 460 |
| Base Plate mm | 340 x 340 | 330 x 330 | 320 x 320 | 440 x 450 |
| Throat mm | 240 | 320 | 320 | 360 |
| Coolant | No | Standard | Standard | Standard |
| Auto Feed | No | No | Yes | Yes |
| RPM Digital Read Out | No | No | Yes | Yes |
| Tapping Facility | No | No | Yes | Yes |
| Auto Feed | No | No | Yes | Yes |
| Length mm | 700 | 830 | 830 | 980 |
| Width mm | 450 | 510 | 510 | 650 |
| Height mm | 1900 | 2180 | 2180 | 2370 |
| Weight kg | 400 | 470 | 510 | 655 |
