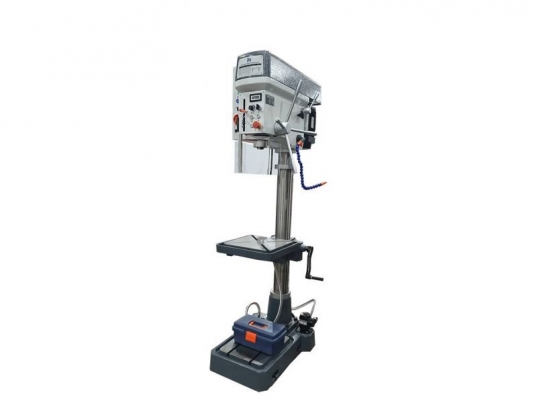

Meyer SL32 Belt-Driven Pillar Drill 415v
The Meyer SL32 Belt-Driven Pillar Drill is a robust and reliable machine designed for heavy-duty drilling tasks. Manufactured to exacting standards, it offers exceptional durability and performance. With its belt-driven mechanism and large drilling capacities, the SL32 features integrated tapping and is a versatile choice for a range of industrial applications. Despite its economical price, it boasts premium features, including a coolant system for improved efficiency.
This machine provides an impressive range of height beneath the spindle and table, accommodating various drilling requirements. Powered by a 415v (3-phase) supply, the SL32 delivers dependable operation, making it a trusted addition to any workshop.
Features
- Belt-Drive head
- Heavy-Duty
- Floor Standing
- Integrated tapping
- Large work tables
- Auto tool release
- Eye shield with interlock switch
- Rise and fall table
- Forward and reverse
- Coolant
Options
- Morse Taper to Weldon Adaptor
- Drill Press Vice: 18009
- Universal Cross Table: 18047
Capacities
Technical Specification
| MODEL | SL32 | |
| Power | v | 415 (3-Phase) |
| Drilling Capacity | mm | 32 |
| Tapping Capacity | M20 | |
| Spindle Taper | MT no | 3 |
| Motor | Kw | 1.5 |
| Speeds | rpm | 100 – 3000 |
| Spindle Stroke | mm | 150 |
| Work Table | mm | 380 x 400 |
| Base Plate | mm | 380 x 400 |
| Throat | mm | 265 |
| Coolant | Yes | |
| Auto Feed | No | |
| Auto Tapping Facility | No | |
| Length | mm | 1040 |
| Width | mm | 640 |
| Height | mm | 1750 |
| Weight | Kg | 310 |
